GB5974.1-86 Wire Rope Thimble
|
|

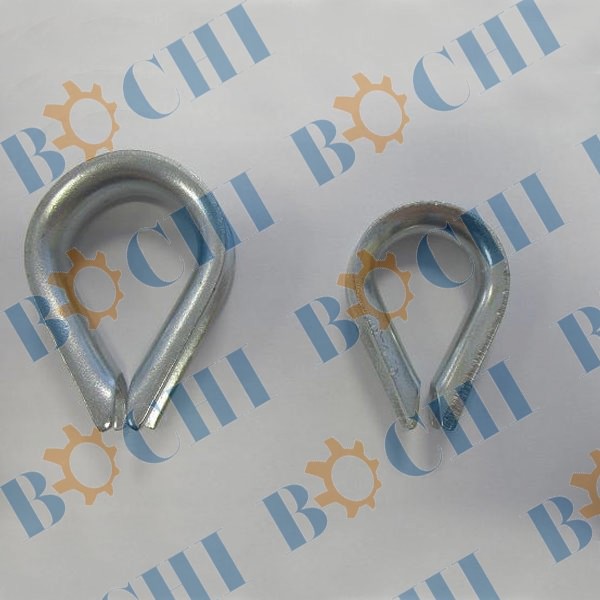

Wire Rope Thimble
Wire Rope Thimble

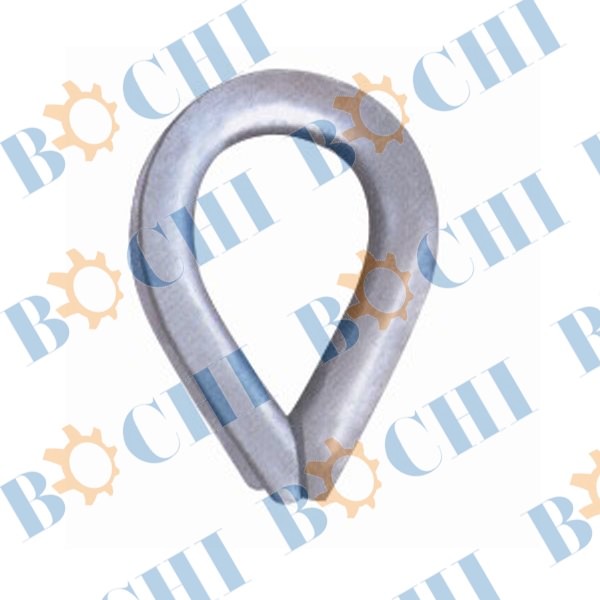

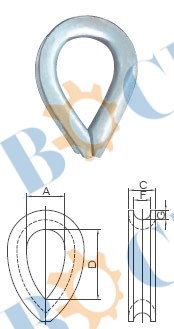

Wire rope Dia.
|
Dimension mm
|
F
|
C
|
A
|
D
|
G
|
12mm
|
12.9
|
21
|
30
|
54
|
6.6
|
14mm
|
15.1
|
24.5
|
35
|
63
|
7.7
|
16mm
|
18.4
|
28
|
40
|
72
|
8.8
|
18mm
|
20.7
|
31.5
|
45
|
81
|
9.9
|
20mm
|
23.0
|
35
|
50
|
90
|
11.0
|
22mm
|
25.3
|
38.5
|
55
|
99
|
12.1
|
24mm
|
27.6
|
42
|
60
|
108
|
13.2
|
26mm
|
29.2
|
45.5
|
65
|
117
|
14.3
|
28mm
|
32.2
|
49
|
70
|
126
|
15.4
|
32mm
|
36.8
|
56
|
80
|
144
|
17.6
|
36mm
|
41.4
|
63
|
90
|
162
|
19.8
|
40mm
|
46.0
|
70
|
100
|
180
|
22.0
|
44mm
|
50.6
|
77
|
110
|
198
|
24.2
|
48mm
|
55.2
|
84
|
120
|
216
|
26.4
|
52mm
|
59.8
|
91
|
130
|
234
|
28.6
|
56mm
|
64.4
|
98
|
140
|
252
|
30.8
|
60mm
|
69.0
|
105
|
150
|
270
|
33.0
|
|
|
|
|
