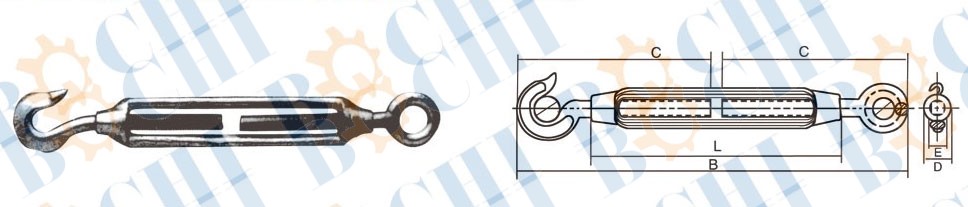

JIS Type

SWL
kg

A

B

C

D

E

F

G

L

Weithg
each kg

100
200
300
500
1000
1500
2200
3000

6x100mm
8x125mm
10x150mm
12x200mm
16x250mm
20x300mm
22x320mm
24x350mm

145
185
210
275
345
435
480
555

215
280
325
430
540
670
740
830

12
14
16
19
23
28
34
36

10
12
14
18
24
26
32
36

6
8
9
11
14
18
20
21

6
8
9
11
14
18
20
21

100
125
150
200
250
300
325
350

0.16
0.24
0.39
0.64
1.44
2.45
3.60
5.00

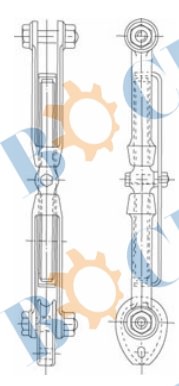

Size

Wire Rope Dia.

S.W.L kN

Screw Dia.

14

14

20.6

M22

16

16

25.5

M24

18

18

32.4

M27

22

20~22.4

50.0

M27

24

24

57.9

M30

25

25

67.7

M33

30

28~30

90.2

M39

32

32

103.0

M39

34

34

112.8

M42

36

36

127.5

M45

38

38

142.2

M48

40

40

161.8

M52

42

42.5

181.4

M56

45

45

206

M60

48

47.5

226

M64

50

50

250.1

M64
