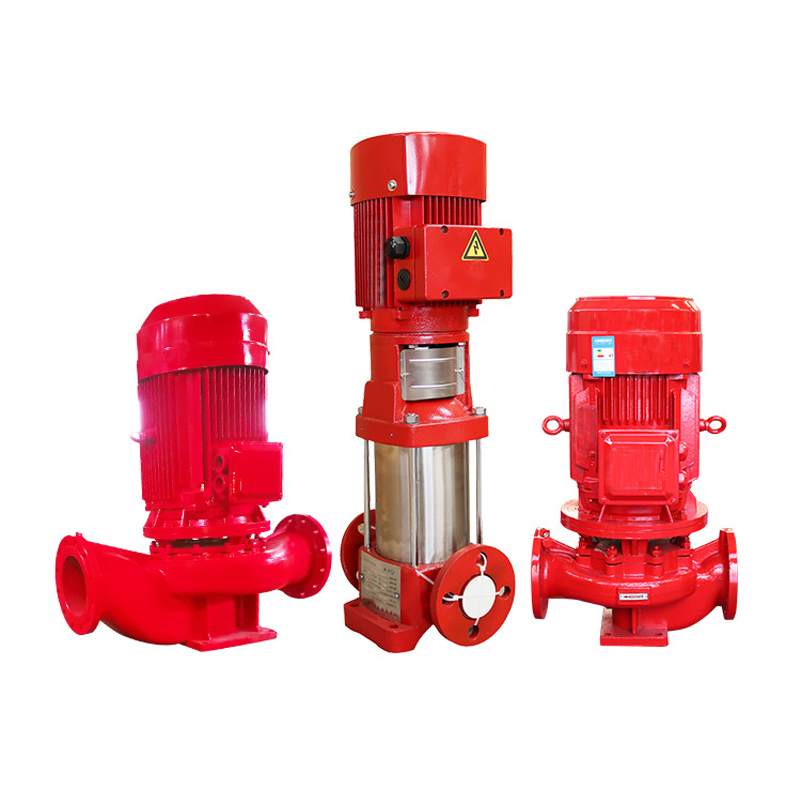

vertical fire pump XBD5.2

Date:2020-11-13 Click:251 Share to:

Order number:XBD5.2

Item No: 2221895

Model: XBD5.2

Material: Cast iron

Performance: Automatic

Purpose: Fire pump

Driving mode: electric

Conveying medium: clean water pump

Pump shaft position: side vertical

Impeller structure: closed impeller

Impeller suction: single suction type

Flow rate:468 (m3/h)

Number of impellers :1

Head: 50(m)

Cavitation allowance: 4.5 (m)

Suction diameter: 250 (mm)

Discharge diameter: 250 (mm)

Construction principle: Jet pump

Series: Single stage

Weight :1530 (kg)

Voltage :380 (V)

Power :110 (KW)

Specifications:XBD5.2/130-250L-400,XBD2.8/130-250L-315A,XBD3.8/130-250L-400B
