High strength straight type ((D) shackle (American standard shackle)
Material: alloy steel integral forged
Safety factor: 1t-25t: 6 More than 25t: 4

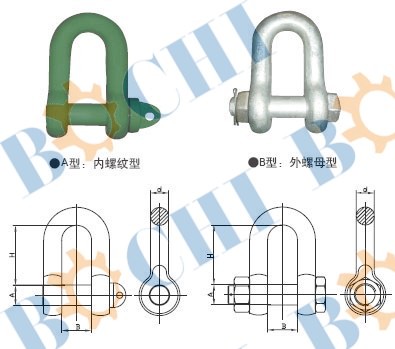

A type: Internal thread type
B type: Outside nut type
BOCHI High Quality Shackles: Light weight, small volume, high safety coefficient, it is easy to operate.
SWL(t)
|
(in.)
|
Dimension (mm)
|
Weight
|
d
|
A
|
B
|
H
|
(kg)
|
1
|
3/8
|
10
|
12
|
16
|
32
|
0.15
|
2
|
1/2
|
13
|
16
|
21
|
41
|
0.35
|
3.25
|
5/8
|
16
|
20
|
27
|
51
|
0.66
|
4.75
|
3/4
|
19
|
22
|
32
|
60
|
1
|
6.5
|
7/8
|
22
|
25
|
37
|
70.5
|
1.5
|
8.5
|
1
|
25
|
30
|
43
|
81
|
2.4
|
9.5
|
1-1/8
|
29
|
32
|
46
|
90
|
3.2
|
12
|
1-1/4
|
32
|
36
|
52
|
100
|
4.5
|
13.5
|
1-3/8
|
35
|
38
|
57
|
112
|
5.1
|
17
|
1-1/2
|
38
|
42
|
60
|
122
|
8.1
|
25
|
1-3/4
|
44
|
50
|
73
|
146
|
12.2
|
35
|
2
|
51
|
56
|
83
|
171
|
18.2
|
45
|
2-1/4
|
56
|
65
|
95
|
180
|
26
|
55
|
2-1/2
|
64
|
70
|
105
|
205
|
35.4
|
60
|
2-3/4
|
70
|
78
|
100
|
233
|
44
|
85(80)
|
3
|
76
|
82
|
121
|
263
|
60.6
|
100
|
3-3/8
|
86
|
92
|
131
|
298
|
82.6
|
120
|
3-1/2
|
90
|
95
|
154
|
312
|
100
|
150
|
4
|
102
|
108
|
160
|
368
|
142
|
175
|
4-1/4
|
108
|
120
|
170
|
390
|
170
|
200
|
4-3/4
|
120
|
130
|
184
|
420
|
255
|
250
|
5
|
127
|
140
|
210
|
450
|
310
|
300
|
6
|
152
|
170
|
220
|
480
|
440
|
400
|
7
|
178
|
190
|
230
|
500
|
620
|
|
