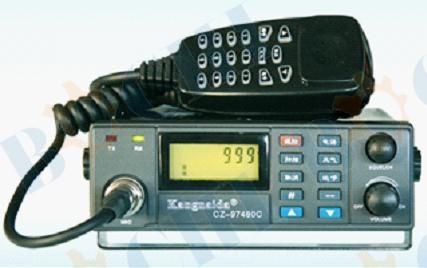

The marine radio telephones in Series CZ-97480 have functions such as group call, selective call, confidential group call,
asking for help in distress, scanning, phoning, weather reception, 20-commonly-used-channel storage, GPS and so on.
It is completely compliance with the standards of "Inshore Fishery Correspondence Net for Safe Salvage" issued
by the Ministry of Agriculture of PRC, and has acquired the product-type approval identified by the Ministry of Information
Industry of PRC according to the relevant test.
Technical Parameters：
Frequency Range：27.500—39.500MHz
Number of Frequency Channels：480CH Channel Spacing：25KHz
Power Supply: power converter Input：24V Output: 15.5V and 17V for the whole device
|
Transmitter
|
Receiver
|
Transmission Power
|
20±2W
|
Reference Sensitivity
|
≤0.4μV
|
Carrier Frequency Tolerance
|
≤20PPM
|
Threshold Squelch Opening Sensitivity
|
≤0.28μV
|
Modulation Limit
|
≤5 KHZ
|
Audio Harmonic Distortion
|
≤7%
|
Current Consumption
|
＜4.5A
|
Modulation Receiving Bandwidth
|
≥2×5 KHZ
|
