manual release disc type towing hook

Date:2020-06-15 Click:551 Share to:

manual release disc type towing hook

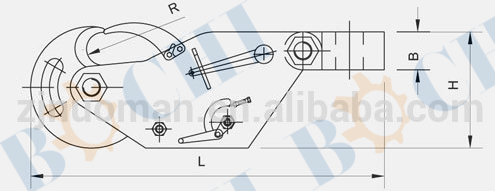

TYPE	SLW(t)	H	L	B	Φ	R
BMMDETMDR-001	15	310	1050	110	75	50
BMMDETMDR-002	20	360	1190	130	85	60
BMMDETMDR-003	30	390	1215	140	90	60
BMMDETMDR-004	40	430	1460	150	100	65
BMMDETMDR-005	50	560	1660	180	130	75
BMMDETMDR-006	60	570	1700	190	130	80
BMMDETMDR-007	80	590	1800	200	140	80
BMMDETMDR-008	100	620	1920	220	150	88
All the details are changeable according to customer's requirements.
