Open Chock JIS F-2006 Type FC

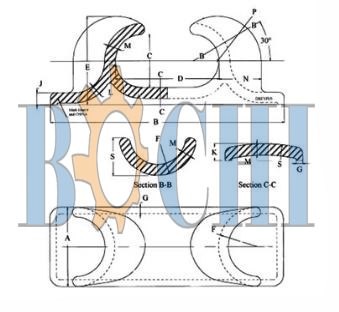

Open Chock JIS F-2006 Type FC Drawing
Product No.
|
Size
A(inch)
|
B
(inch)
|
C
(inch)
|
D
(inch)
|
E
(inch)
|
F
(inch)
|
G
(inch)
|
|
BMMMEMCOC-001
|
9"
|
27-3/4
|
6
|
12
|
10-1/8
|
4-1/2
|
7/8
|
BMMMEMCOC-002
|
10"
|
30-3/8
|
6-5/8
|
13-1/4
|
11-1/8
|
5
|
1
|
BMMMEMCOC-003
|
12"
|
36
|
8
|
16
|
13-3/8
|
6
|
1-1/4
|
BMMMEMCOC-004
|
14"
|
42
|
9-3/8
|
18-3/4
|
15-5/8
|
7
|
1-1/4
|
BMMMEMCOC-005
|
16"
|
48
|
10-3/4
|
21-1/2
|
17-3/4
|
8
|
1-3/8
|
BMMMEMCOC-006
|
18"
|
54
|
12
|
24
|
20
|
9
|
1-1/2
|
Product No.
|
J
(inch)
|
K
(inch)
|
L
(inch)
|
M
(inch)
|
N
(inch)
|
P
(inch)
|
S
(inch)
|
|
BMMMEMCOC-001
|
1-1/2
|
2-1/16
|
1-1/8
|
1-3/8
|
4-7/8
|
5-1/16
|
4-1/4
|
BMMMEMCOC-002
|
1-9/16
|
2-3/16
|
1-1/4
|
1-1/2
|
5-7/16
|
5-3/8
|
4-3/4
|
BMMMEMCOC-003
|
1-7/8
|
2-5/8
|
1-1/2
|
1-3/4
|
6-1/2
|
6-3/4
|
5-3/4
|
BMMMEMCOC-004
|
1-1/4
|
3-1/16
|
1-3/4
|
2
|
7-5/8
|
7-7/8
|
6-11/16
|
BMMMEMCOC-005
|
1-3/8
|
3-3/8
|
2
|
2-1/4
|
8-5/8
|
9
|
7-3/4
|
BMMMEMCOC-006
|
1-1/2
|
3-7/8
|
2-1/4
|
2-1/2
|
9-3/4
|
10-1/8
|
8-5/8
|
|
