Single Horizontal Lead Sheave

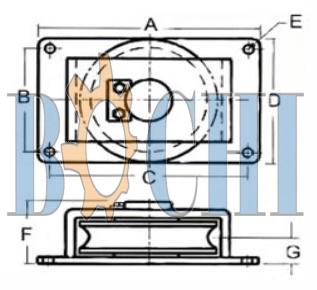

Single Horizontal Lead Sheave Drawing
Product No.
|
Sheave
Diameter
|
Wire Rope
Size
|
Safe Work
Load (Pounds)
|
Dimensions
|
A(inch)
|
B(inch)
|
C(inch)
|
D(inch)
|
E(inch)
|
F(inch)
|
G(inch)
|
BMMMEHSSH-001
|
6inch
|
1/2inch
|
4000
|
9 1/2
|
5
|
8 1/2
|
6
|
7/16
|
2 3/4
|
1 1/8
|
BMMMEHSSH-002
|
8inch
|
5/8inch
|
8000
|
12
|
6 3/4
|
10 3/4
|
8
|
9/16
|
3 1/4
|
1 3/8
|
BMMMEHSSH-003
|
10inch
|
3/4inch
|
12000
|
14 1/2
|
8 1/2
|
13
|
10
|
11/16
|
3 3/4
|
1 3/4
|
BMMMEHSSH-004
|
14inch
|
7/8inch
|
20000
|
19
|
11 1/2
|
17
|
13 1/2
|
13/16
|
4 1/2
|
2 1/4
|
|
