CK7516 precision CNC lathe

Date:2020-06-12  Click:950   Share to:

  • product description:

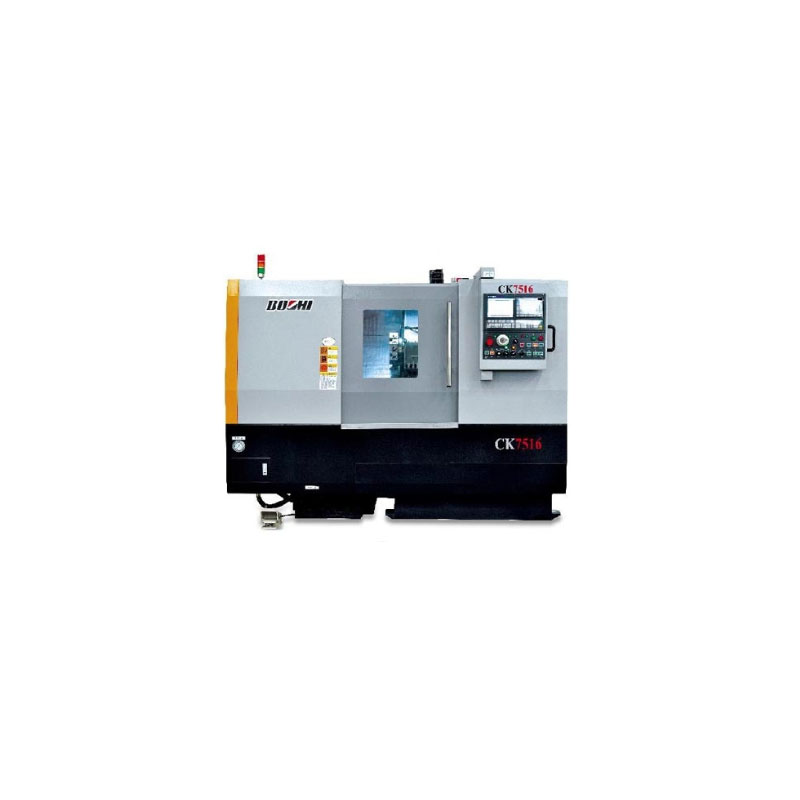

    CK7516 precision CNC lathe features:
    Its strength, dynamic and static stiffness, mechanical structure of main components, protective cooling, safety and other advanced design. This series of machine tools use high-strength cast iron casting, bed base integrated structure, inclined guide rail, high-precision through-hole spindle structure, vibration-resistant design, and wide-area AC spindle motor, spindle bearing and feed screw bearing and other key components All use world-famous products, equipped with multi-station turret tool holder, which can be indexed continuously, and the nearest tool can be changed. The index accuracy is high and the indexing speed is fast. The machine tool is equipped with CNC systems such as Japan FANUC 0i-TD, FANUC 0i Mate-TD, German Siemens 828D, Omori, and other famous brand systems at home and abroad. The hydraulic components, lubrication units, and chucks of the machine tool are selected from domestic and foreign high-quality products.


     Item  unit CK7516   CK7516A CK7516C  CK7516G
     Largest turning diameter on the bed  mm  φ400  φ400  φ400  φ400
     Large swing diameter on bed saddle  mm  φ260  φ260  φ260  φ260
     zui large turning diameter  mm  φ285  φ285  φ285  φ285
     zui large turning length  mm  400  400  400  400
     zui large bar diameter  mm  φ42  φ42  φ42  φ42
     Spindle head type    A2-5  A2-5  A2-5  A2-5
     Spindle through hole diameter  mm  φ57  φ57  φ57  φ57
     Chuck diameter  mm  φ165  φ165  φ165  φ165
     Spindle speed  r/min  55-5500  80-3500  55-5500  55-5500
     Spindle motor power (continuous/30 minutes)  kW  11/15  7.5/15  11/15  11/15
     Sleeve diameter  mm  φ70 φ70  φ70  φ70
     Sleeve stroke  mm 80  80 80  80
     *Taper (standard/active spindle structure)    Mohs No. 4/2 Mohs No. 4/2  Mohs No. 4/2  Mohs No. 4/2
     Moving range X/Z  mm  165/410  165/410  165/410  165/410
     Fast moving speed X/Z  m/min  12/16  12/16  30/24  16/20
     Number of knives    12/8  12/8  12/8  12/8
     Tool clamping size Turning/boring  mm  20×20/φ32  20×20/φ32  20×20/φ32  20×20/φ32
     Bed tilt angle    45°  45°  45°  45°
     battery capacity  kVA  35  35  35  35
     Machine size (length × width × height)  mm  2370×1670×1970  2370×1670×1970  2370×1670×1970  2370×1670×1970
     Machine weight  KG  3000  3000  3000  3000
