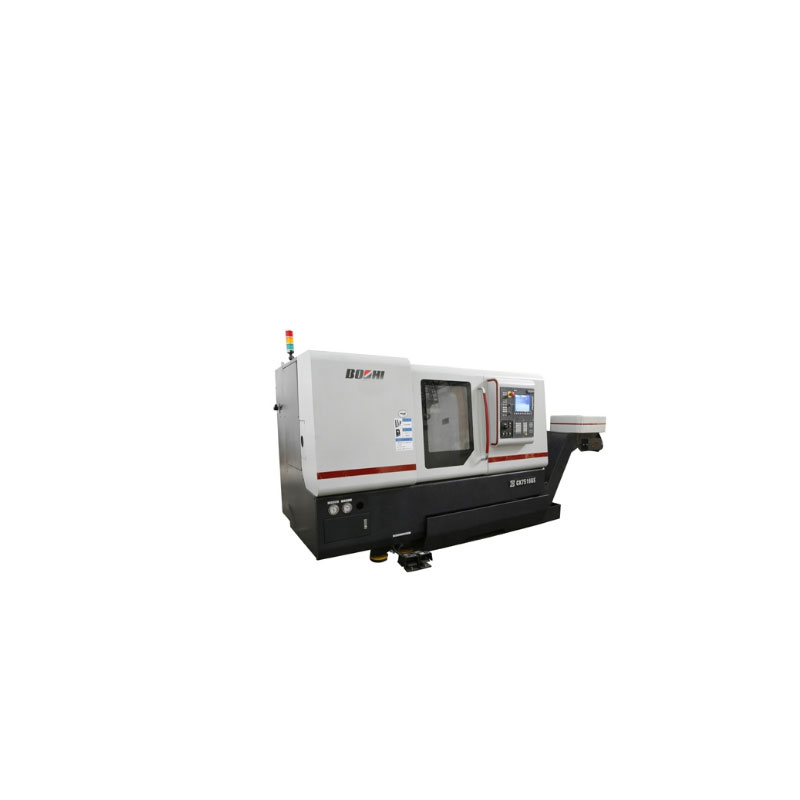

CK7516GS high speed CNC lathe

Date:2020-06-12  Click:1496   Share to:

    • product description：
    CK7516GS high-speed CNC lathe is based on the optimization technology of high-efficiency machining structure, thermal deformation and compensation technology, dynamic and static detection technology of high-speed turning machining, spindle unit technology, high-speed turning machining technology, modular design of functional components, dynamic performance research and lightweight Research on technology, high-speed mobile drive technology, reliability technology, etc., developed a high-speed CNC turning center with a diameter of φ400mm.
    specifications：
     ITEN  UNIT  CK7516GS
     Largest turning diameter on the bed  mm  Φ450
     Large swing diameter on bed saddle  mm  Φ280
     Large workpiece length  mm  500
     zui large turning diameter  mm  Φ285
     zui large bar diameter  mm  Φ35
     Hydraulic chuck diameter  mm  Φ169
     Spindle head type    A2-5 （GB/T5900.1）
     Spindle through hole diameter  mm  Φ49
     Spindle bearing diameter (front/rear)  mm  Φ90/Φ75
     Spindle speed  r/min  80-8000
     Main motor power (continuous/30 minutes)  kW  15/18.7
    Sleeve diameter/stroke   mm Φ70/80
     Tilt angle DEG    45°
     Travel distance X/Z  mm  165/510
     Fast moving speed X/Z  m/min  42/42
     Servo motor torque X/Z  Nm  10.3/14.7
     Ball screw diameter X/Z  mm  Φ32/Φ40
     Number of tools / number of driven tools    12
     Tool size (turning/boring)  mm  20×20/Φ32
     power supply  kVA  40
     Volume (length × width × height)  mm  3740×1780×1930
     total weight  kg  4500
