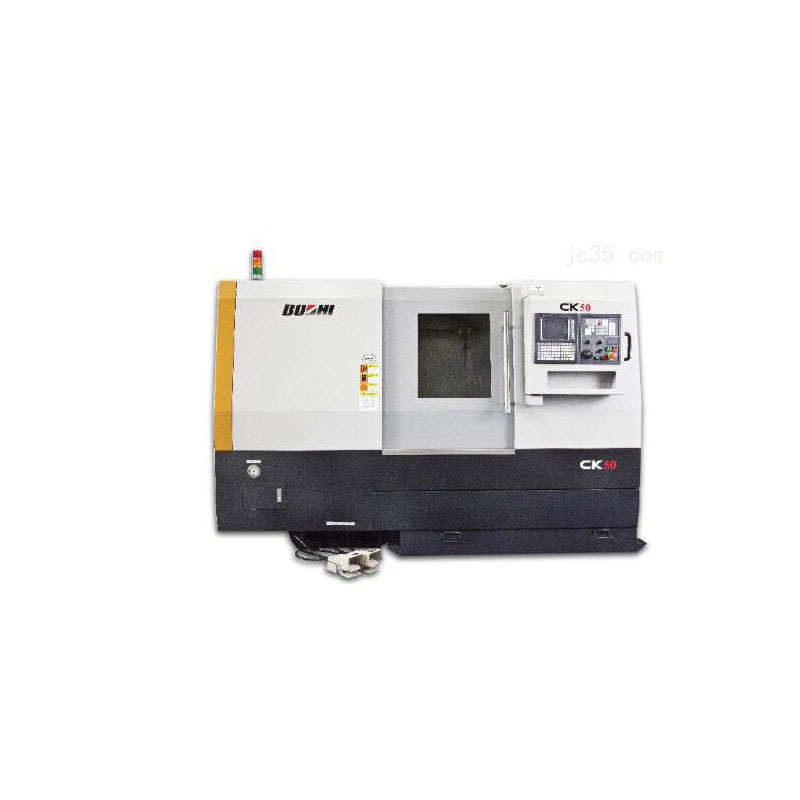

CK50 high precision CNC lathe

Date:2020-06-12  Click:899   Share to:

  • product description:
    CK50 high precision CNC lathe is a high precision, high performance ratio machine tool. The machine tool adopts high-strength cast iron bed base structure, inclined guide rail, high-precision through-hole spindle structure, and good seismic performance. The machine tool is equipped with a multi-station turret tool post, and the tool change is nearby. The machine is equipped with FANUC Oi mate CNC system. The design of the machine tool is novel, the operation of the panel is convenient, and it is fully enclosed and protected. This high precision CNC lathe is suitable for semi-finishing and finishing of small and medium parts.
    specifications:
     ITEM  UNIT  CK50
     Maximum swing diameter on the bed  mm  520
     Maximum turning diameter on the saddle  mm  450
     Maximum turning diameter of carriage  mm  300
     Spindle speed  r/min  10-2000
     Spindle through hole diameter  mm  86
     Spindle head type    A2-8
     main motor power  kw  11/15 servo motor
     Chuck diameter  mm  250
     Center distance  mm  1000/1500/2000
     Tailstock-Sleeve Diameter  mm  75
     Tailstock-sleeve stroke  mm  150
     Taper    MT5
     X/Z axis moving distance  mm  260/1000
     X/Z fast moving speed  mm  6/8
     Total number of tool holders    4 (six stations)
     Knife size  mm  25×25
     X/Z axis repeated positioning precision  mm  0.005/0.007
     power supply    380V50HZ
     Dimensions (LXWXH)  cm  275×145×155
     weight  KG  3200
