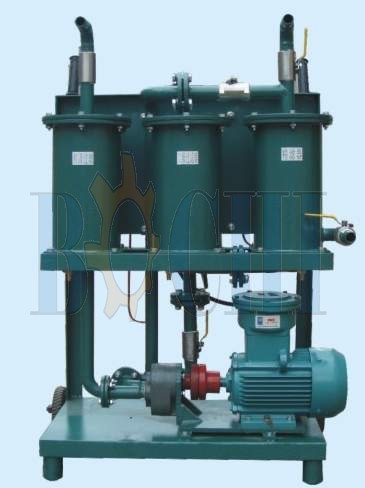

Three stage Oil Filter

Date:2020-06-12  Click:341   Share to:


  • Product Description

    Application:
    As composed of three-stage precise filtering, this machine is an ideal portable oil purifier, which can remove the big and tiny impurities effectively.

    Features:
    1. Automatic back flushing system which avoids the trouble of hand washing and the damage to filter element, can effectively extend the lifetime of the filter element.
    2. The product is equipped with three-stage purification, high-precision filtration.
    3. Imported HPM filter element, long usage life.
    4. This machine is small, hi-efficiency, convenient.

    Advantage:
    The product is equipped with three-stage purification, portable, easy to operate, very low price, no need of purification paper, no contamination to the ground. The product can effectively purify the tiny and fine mechanical impurity min oil, enabling it to be a prior choice of power industry, petroleum, chemical, metallurgy, mechanics and railway for oil filling, oil drawing and high precision impurity removal of mutual inductor, lathe, and oil breaker which do not use large quantity of oil.

    Technical Parameters
    Model Flow Lift Cleanliness Power Power Supply Weight
      (L / min ) ( m ) (NSA) (KW) 3-phase50Hz, 380v (Kg)
    BMMAMTOF-32 32 15 6 0.75   110
    BMMAMTOF-50 50 15 6 1.1   120
    BMMAMTOF-80 80 15 6 1.5   130
    BMMAMTOF-100 100 15 6 2.2   145
    BMMAMTOF-150 150 15 6 3   150
    BMMAMTOF-200 200 15 6 4   18
    BMMAMTOF-300 300 15 6 6   200
