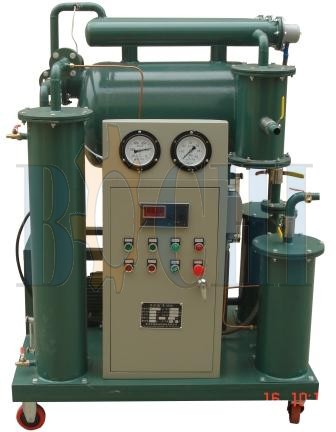

High Efficiency Vacuum Oil Filter

Product Description

I. Application:
This machine is special for purifying various of insulating oils including transformer oil, mutual inductor oil and switch oil etc. It is widely applied to the areas of power station, transformer substation, railway, petroleum, chemical and metallurgy. Also it is the best choice for filling oil into power equipment and drying moisture of power equipment.

II. Features:
1. Automatic back flushing system. Avoiding the trouble of hand washing and the damage to filter element.
2. The advanced low temperature separated oil and water technology from Japan can purify the molecular water in oil.
3. The Japanese macromolecule magnetic filter element can purify the impurities efficiently without any additive. Impurities in purified oil is <=5 μm. And the cleanliness is above NAS6.
4. The heating system is made from aero materials. It guarantees the balanced heating. You can control the oil temperature between 0~80 degree as you wish. No carbonization.
5. The combination of coalescing separation and vacuum duplex 3D stereo-evaporation, eliminating water. Liquid water content will <=5 PPM, and breakdown voltage will achieve 65KV after purified.
6. A trio of automatic interlocked preventive device. It can run online 200 hours above.
7. We can design explosion preventive machines with your request. The degree of explosive prevention can achieve dIIBT4, even dIICT4.

Advantages:
It's a new-type of high effective vacuum oil purifier with the duplex 3Dstereo-evaporation technology and coalescing separation technology. Adopting the technology, which remove the impurities through double FH trapezoidal network and absorbing by high polymer without any mechanical power. So it is five or eight times as effective as the common vacuum oil purifiers. The consumption of energy is low and doesn't require other consumptive materials.
