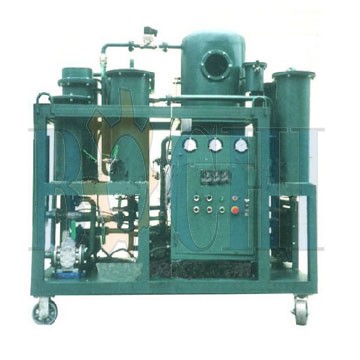

Phosphate Fire-resistant Oil Filter

Date:2020-06-12 Click:360 Share to:

Application:
It is specially used in the treatment and regeneration of fire-resistant hydraulinc oil in the big and medium-sized thermoelectric generator speed-governing system.

Features:
1. This machine's body is made of acid and dissolving resistant stainless steel; The stage-to-stage dandified filter element is made of special materials.
2. This machine can regenerate the seriously deteriorated oil by removing the polarity materials such as the deep oxides, free carbon in the oil effectively. It can make the seriously deteriorated oil reach to the normal index like anti-oxides, acid -alkali water-solubility.
3. The product is equipped with three-stage purification, high-precision filtration.
4. The materials and phosphate ester are of good adaptability and of no leakage and corrosion.
5. Automatic back flushing system which avoids the trouble of hand washing and the damage to filter element, can effectively extend the lifetime of the filter element.
6. The advanced oil-water separation technology in low temperature brought in from Japan can purify the molecular water in oil.
7. With the application of third class filtering and high polymeric absorbing, the cleanliness is over NAS grade 6 and the Impurities in purified oil is <=5 μm.
8. The Japanese macromolecule magnetic filter element can break the emulsification thoroughly without any additive.
9. The heating system is made from aero materials. It guarantees the balanced heating. You can control the oil temperature between 0~80 degree as you wish. No carbonization.
10. The combination of coalescing separation and vacuum duplex 3D stereo-evaporation, eliminating water. Liquid water content will <=80PPM.
11. A trio of automatic interlocked preventive device. It can run online for more than 200 hours.
12. We can design explosion preventive machines as your request. The degree of explosive prevention can achieve dIIBT4, even dIICT4.

Advantages:
After purification by this machine, the phosphate ester fire-resistant hydraulic oil has small water content and few impurities so as to be repeatedly used in various high-precision hydraulic equipments at home and abroad.

Item	Unit	BMMAMP VOF-20	BMMAMP VOF-30	BMMAMP VOF-50	BMMAMP VOF-80	BMMAMP VOF-100	BMMAMP VOF-150	BMMAMP VOF-200
Flow capacity	L/H	1200	1800	3000	4800	6000	9000	12000
Working vacuity	Mpa	-0.06～-0.095
Working pressure	Mpa	≤0.5
Temperature range	℃	Normal temperature～100
Demulsibility	min	≤15(GB/F7305)
Power		3PH 50HZ 380V
Heating efficiency	KW	24	30	36	42	56	72	84
Total efficiency	KW	26	32	38	45	60	78	89
Inlet&Outlet diameter	mm	20	25	32	32	40	50	50
Weight	Kg	450	450	500	580	700	850	1000
