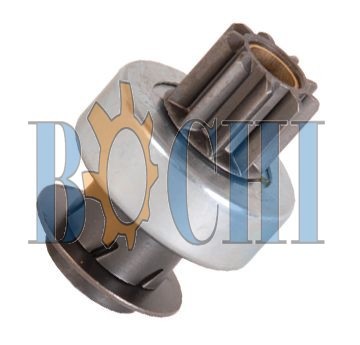

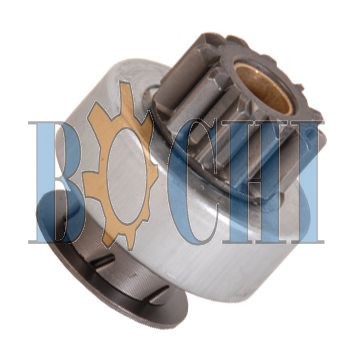

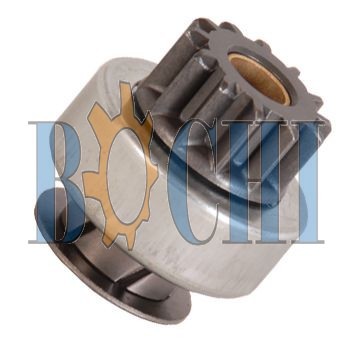

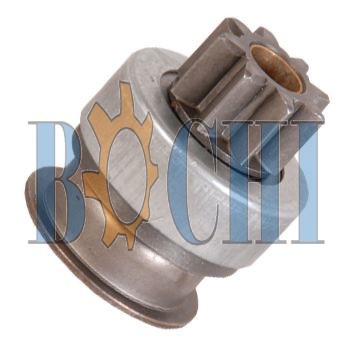

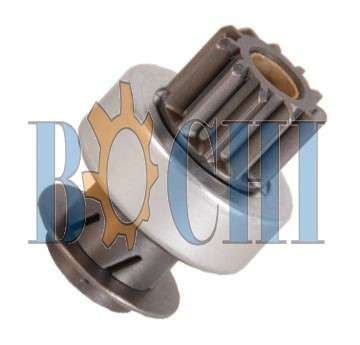

Starter drive for DELCO

Date:2020-06-10  Click:503   Share to:

    • 54-155

    54-156

    54-157

    54-168            (54-174)

    54-176

    Factory No. Model No. No of Splin Rotation No of Teeth Pinion O.D. Pinion I.D. Lenth over 2 teeth Bushing Dia Length Clutch O.D.
    BMAESSD91 54-168 (54-174) 6T right 11T 30 21.5 10.48 12 47 46
    BMAESSD68 54-156 6T right 9T 25.8 17.4 10.48 12 61.5 46
    BMAESSD90 54-157 12T right 9T 25.8 17.4 10.48 12 45 45
    BMAESSD24 54-155 6T right 11T 30 21.6 10.49 12 61 46
    BMAESSD127 54-173 6T right 9T 25.8 17.4 10.48 12 47 46
    BMAESSD309 54-176 6T right 12T 32 24 10.51 12 47 46
    BMAESSD414 54-175 6T right 9T 29.65 19.28 12.51 12 47 46
    BMAESSD455 　 6T right 10T 28 19.4 10.46 12 47 46
    BMAESSD550 　 6T right 10T 33.4 23.55 12.85 12 47 46
    BMAESSD551 　 6T right 8T 28.4 18 12.875 12 48.3 46
    BMAESSD552 　 6T right 10T 28.2 19.8 10.95 12 47 46
    BMAESSD626 　 6T right 9T 25.5 16.8 10.69 12 47 46
    BMAESSD191 　 6T right 12T 32 23.9 10.51 12 47 46
    BMAESSD399 　 6T right 9T 29.5 20.6 12.1 12 63.2 46
    BMAESSD644 　 6T right 11T 30 21.6 10.49 12 62.5 45
    BMAESSD695 54-101 3T right 9T 25.8 17.4 10.48 12 82 46
