Pipe Section

Date:2020-06-03 Click:455 Share to:

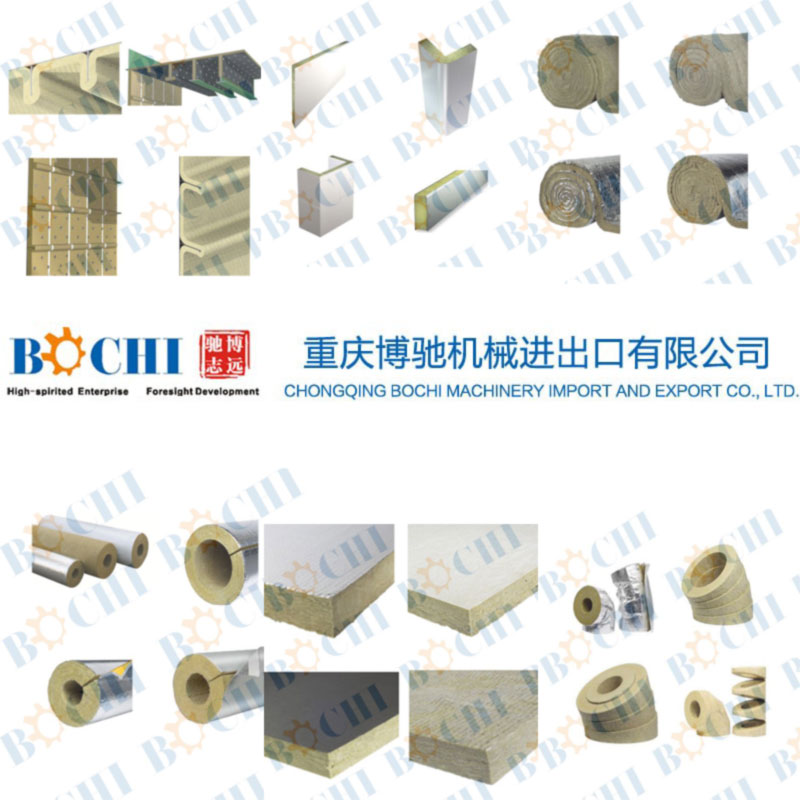

Pipe Section

it is a non-combustible stone wool pipe section for thermal and condensation insulation of pipework

and air ducts in buildings and ships. It has a reinforced aluminium foil facing and tape in the longitudinal

seam which prevents condenstation gives a quick installation

Product Properties		BMMDEDPPS001	BMMDEDPPS002	BMMDEDPPS003	Unit
Nominal Density		110	120	140	kg/m3
Thermal Conductivity	50	≤0.039	≤0.039	≤0.039	W/(m*k)
	100	≤0.044	≤0.044	≤0.044
	150	≤0.056	≤0.052	≤0.052
	200	≤0.072	≤0.063	≤0.061
	250	≤0.084	≤0.072	≤0.070
	300	≤0.095	≤0.081	≤0.078
Max Service Temperature		450	650	650	℃
Max Service Temperature		Facing Materials:80			℃
Thermal Load Contraction		400	600	600	℃
Linear Shrinkage		≤2	≤2	≤2	％
Water vapor sorption		≤0.02	≤0.02	≤0.02	vol％
Water Repellent		≥99	≥99	≥99	％
Water leachable chloride content		≤10	≤10	≤10	PPM
Reaction to Fire		Class A1 Noncombustible, Surface burning characteristics:Smoke Development≤50,Flame Spread≤25			/
Organic Content		≤4	≤4	≤4	%
Environment		Asbestos free,no CFCs,HCFCs,HFCs			/
Corrosiveness		Corrosion Free
